PowerAnalysis: Warmup
Category: Cryptography Points: 400 Difficulty: Hard
Challenge Description
This encryption algorithm leaks a “bit” of data every time it does a computation. Use this to figure out the encryption key. Download the encryption program here
encrypt.py. Access the running server withnc saturn.picoctf.net 52735. The flag will be of the formatpicoCTF{<encryption key>}where<encryption key>is 32 lowercase hex characters comprising the 16-byte encryption key being used by the program.
Given files: encrypt.py
Challenge server: nc saturn.picoctf.net 52735
Initial Reconnaissance
The challenge title “PowerAnalysis” immediately points to side-channel attacks. Let’s examine the provided encryption script to understand exactly what information is leaking.
#!/usr/bin/env python3
import random, sys, time
with open("key.txt", "r") as f:
SECRET_KEY = bytes.fromhex(f.read().strip())
Sbox = (
0x63, 0x7C, 0x77, 0x7B, 0xF2, 0x6B, 0x6F, 0xC5, 0x30, 0x01, 0x67, 0x2B, 0xFE, 0xD7, 0xAB, 0x76,
# ... (AES S-box values)
)
leak_buf = []
def leaky_aes_secret(data_byte, key_byte):
out = Sbox[data_byte ^ key_byte]
leak_buf.append(out & 0x01) # Leaks the lowest bit!
return out
def encrypt(plaintext, key):
global leak_buf
leak_buf = []
ciphertext = [leaky_aes_secret(plaintext[i], key[i]) for i in range(16)]
return ciphertext
def encrypt_and_leak(plaintext):
ciphertext = encrypt(plaintext, SECRET_KEY)
ciphertext = None
time.sleep(0.01)
return leak_buf.count(1) # Returns count of '1' bits
Understanding the Vulnerability
The server performs a simplified AES operation:
- XORs each plaintext byte with the corresponding key byte
- Looks up the result in the AES S-box
- Leaks the lowest bit of each S-box output
- Returns the total count of how many leaked bits were ‘1’
This is our side channel. Instead of revealing nothing about the internal state, the server tells us exactly how many S-box outputs had their lowest bit set to 1.
Testing manually:
echo "00000000000000000000000000000000" | nc saturn.picoctf.net 52735
Output:
Please provide 16 bytes of plaintext encoded as hex: leakage result: 4
So with an all-zeros plaintext, we get a leak count of 4. This means 4 of the 16 S-box outputs had their lowest bit set to 1.
Approach
The Attack Strategy
Since we can send arbitrary plaintext and observe the leak count, we can recover each key byte independently using a correlation attack.
The plan:
- For each of the 16 key byte positions, send 256 different plaintexts (varying only that byte position) and record the leak count for each plaintext
- For each possible key byte value (0x00 to 0xFF), calculate what the leaked bit should be for each plaintext and score how well this prediction correlates with actual observations
- The key byte with the highest correlation score is the correct one
The leak reveals information specific to each byte position. When we vary plaintext[i] while keeping all other bytes constant:
Sbox[plaintext[i] ^ key[i]] & 0x01
The contribution from position i to the total leak changes based on our plaintext choice. The other 15 positions contribute constant “noise” that doesn’t affect our correlation analysis since we’re not varying those bytes.
Correlation Scoring
For each key guess, we build a correlation score:
for key_guess in range(256):
for plaintext_value, observed_leak in observations:
predicted_bit = Sbox[plaintext_value ^ key_guess] & 0x01
if predicted_bit == 1:
scores[key_guess] += observed_leak
else:
scores[key_guess] -= observed_leak
If our key guess is correct, the predicted bit will align with the leak patterns. When we predict a ‘1’ bit and the actual leak count is high, we add to the score. When we predict a ‘0’ bit and the leak is high (meaning other positions contributed those ‘1’ bits), we subtract.
The correct key byte produces the highest absolute correlation score because its predictions consistently match reality.
Building the Exploit
from pwn import *
from collections import defaultdict
Sbox = (
0x63, 0x7C, 0x77, 0x7B, 0xF2, 0x6B, 0x6F, 0xC5, 0x30, 0x01, 0x67, 0x2B, 0xFE, 0xD7, 0xAB, 0x76,
0xCA, 0x82, 0xC9, 0x7D, 0xFA, 0x59, 0x47, 0xF0, 0xAD, 0xD4, 0xA2, 0xAF, 0x9C, 0xA4, 0x72, 0xC0,
0xB7, 0xFD, 0x93, 0x26, 0x36, 0x3F, 0xF7, 0xCC, 0x34, 0xA5, 0xE5, 0xF1, 0x71, 0xD8, 0x31, 0x15,
0x04, 0xC7, 0x23, 0xC3, 0x18, 0x96, 0x05, 0x9A, 0x07, 0x12, 0x80, 0xE2, 0xEB, 0x27, 0xB2, 0x75,
0x09, 0x83, 0x2C, 0x1A, 0x1B, 0x6E, 0x5A, 0xA0, 0x52, 0x3B, 0xD6, 0xB3, 0x29, 0xE3, 0x2F, 0x84,
0x53, 0xD1, 0x00, 0xED, 0x20, 0xFC, 0xB1, 0x5B, 0x6A, 0xCB, 0xBE, 0x39, 0x4A, 0x4C, 0x58, 0xCF,
0xD0, 0xEF, 0xAA, 0xFB, 0x43, 0x4D, 0x33, 0x85, 0x45, 0xF9, 0x02, 0x7F, 0x50, 0x3C, 0x9F, 0xA8,
0x51, 0xA3, 0x40, 0x8F, 0x92, 0x9D, 0x38, 0xF5, 0xBC, 0xB6, 0xDA, 0x21, 0x10, 0xFF, 0xF3, 0xD2,
0xCD, 0x0C, 0x13, 0xEC, 0x5F, 0x97, 0x44, 0x17, 0xC4, 0xA7, 0x7E, 0x3D, 0x64, 0x5D, 0x19, 0x73,
0x60, 0x81, 0x4F, 0xDC, 0x22, 0x2A, 0x90, 0x88, 0x46, 0xEE, 0xB8, 0x14, 0xDE, 0x5E, 0x0B, 0xDB,
0xE0, 0x32, 0x3A, 0x0A, 0x49, 0x06, 0x24, 0x5C, 0xC2, 0xD3, 0xAC, 0x62, 0x91, 0x95, 0xE4, 0x79,
0xE7, 0xC8, 0x37, 0x6D, 0x8D, 0xD5, 0x4E, 0xA9, 0x6C, 0x56, 0xF4, 0xEA, 0x65, 0x7A, 0xAE, 0x08,
0xBA, 0x78, 0x25, 0x2E, 0x1C, 0xA6, 0xB4, 0xC6, 0xE8, 0xDD, 0x74, 0x1F, 0x4B, 0xBD, 0x8B, 0x8A,
0x70, 0x3E, 0xB5, 0x66, 0x48, 0x03, 0xF6, 0x0E, 0x61, 0x35, 0x57, 0xB9, 0x86, 0xC1, 0x1D, 0x9E,
0xE1, 0xF8, 0x98, 0x11, 0x69, 0xD9, 0x8E, 0x94, 0x9B, 0x1E, 0x87, 0xE9, 0xCE, 0x55, 0x28, 0xDF,
0x8C, 0xA1, 0x89, 0x0D, 0xBF, 0xE6, 0x42, 0x68, 0x41, 0x99, 0x2D, 0x0F, 0xB0, 0x54, 0xBB, 0x16,
)
def query_server(plaintext):
conn = remote('saturn.picoctf.net', 52735)
conn.recvuntil(b'hex: ')
conn.sendline(plaintext.hex().encode())
response = conn.recvline().decode()
conn.close()
leak = int(response.split('leakage result:')[1].strip())
return leak
def recover_key():
key = []
for pos in range(16):
print(f"[*] Recovering key byte {pos}...")
observations = []
for pt_val in range(256):
pt = bytearray([0] * 16)
pt[pos] = pt_val
leak = query_server(bytes(pt))
observations.append((pt_val, leak))
scores = defaultdict(int)
for key_guess in range(256):
for pt_val, actual_leak in observations:
predicted_bit = Sbox[pt_val ^ key_guess] & 0x01
if predicted_bit == 1:
scores[key_guess] += actual_leak
else:
scores[key_guess] -= actual_leak
best = max(scores.items(), key=lambda x: abs(x[1]))[0]
key.append(best)
print(f" Found: 0x{best:02x}")
return bytes(key)
if __name__ == '__main__':
print("[*] Starting attack (4096 queries total)...\n")
recovered_key = recover_key()
flag = f"picoCTF}"
print(f"\n[+] Key: {recovered_key.hex()}")
print(f"[+] Flag: {flag}")
Solution
Running the exploit against the server:
python3 solve.py
The attack makes 4,096 queries (16 bytes x 256 plaintexts) and recovers the key byte by byte:
[*] Starting attack (4096 queries total)...
[*] Recovering key byte 0...
Found: 0x81
[*] Recovering key byte 1...
Found: 0x80
[*] Recovering key byte 2...
Found: 0x8c
[*] Recovering key byte 3...
Found: 0x36
[*] Recovering key byte 4...
Found: 0xfc
[*] Recovering key byte 5...
Found: 0xa7
[*] Recovering key byte 6...
Found: 0x28
[*] Recovering key byte 7...
Found: 0x8b
[*] Recovering key byte 8...
Found: 0x8a
[*] Recovering key byte 9...
Found: 0x57
[*] Recovering key byte 10...
Found: 0xf9
[*] Recovering key byte 11...
Found: 0x09
[*] Recovering key byte 12...
Found: 0x07
[*] Recovering key byte 13...
Found: 0xcc
[*] Recovering key byte 14...
Found: 0xba
[*] Recovering key byte 15...
Found: 0xe6

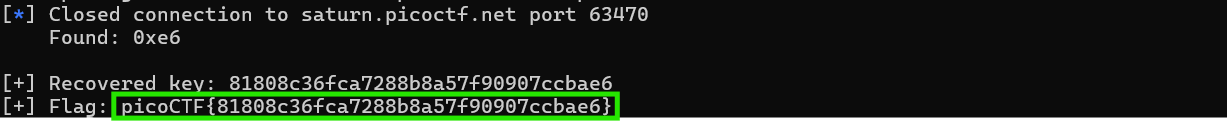

[+] Key: 81808c36fca7288b8a57f90907ccbae6
[+] Flag: picoCTF{81808c36fca7288b8a57f90907ccbae6}
Flag (click to reveal)
`picoCTF{81808c36fca7288b8a57f90907ccbae6}`Tools Used
- pwntools - Python library for network interaction and CTF automation
- Python 3 - Scripting and statistical analysis
References
- Introduction to Power Analysis Attacks
- Differential Power Analysis (DPA) - The original DPA paper by Paul Kocher
- Side-Channel Attacks on Cryptographic Implementations
- AES S-box
